Carbon Water Filter | Water Treatment

Details

SKU

HMF-CYO

Weight

24.00 lbs

Title

Home Master Create Your Own Whole House Water Filter

Our price:

$159.95

Options


Stages
Bracket Color
30 mic. sediment
5 mic. sediment
1 mic. sediment
Nanofiber sediment 0.2 mic
25/10/5/1 micron sediment
Radial Flow Iron
1 mic. lead & cyst Carbon Block
Radial Flow Catalytic Carbon (purple)
Radial Flow GAC
KDF55/Granular Activated Catalytic Carbon
KDF85/Catalytic Carbon
Acid Neutralizing/Calcite
Catalytic Carbon Filter
Add Pressure Gauges

Qty

Ask a question about this product

CUSTOMIZE YOUR HOME MASTER^® WATER FILTER

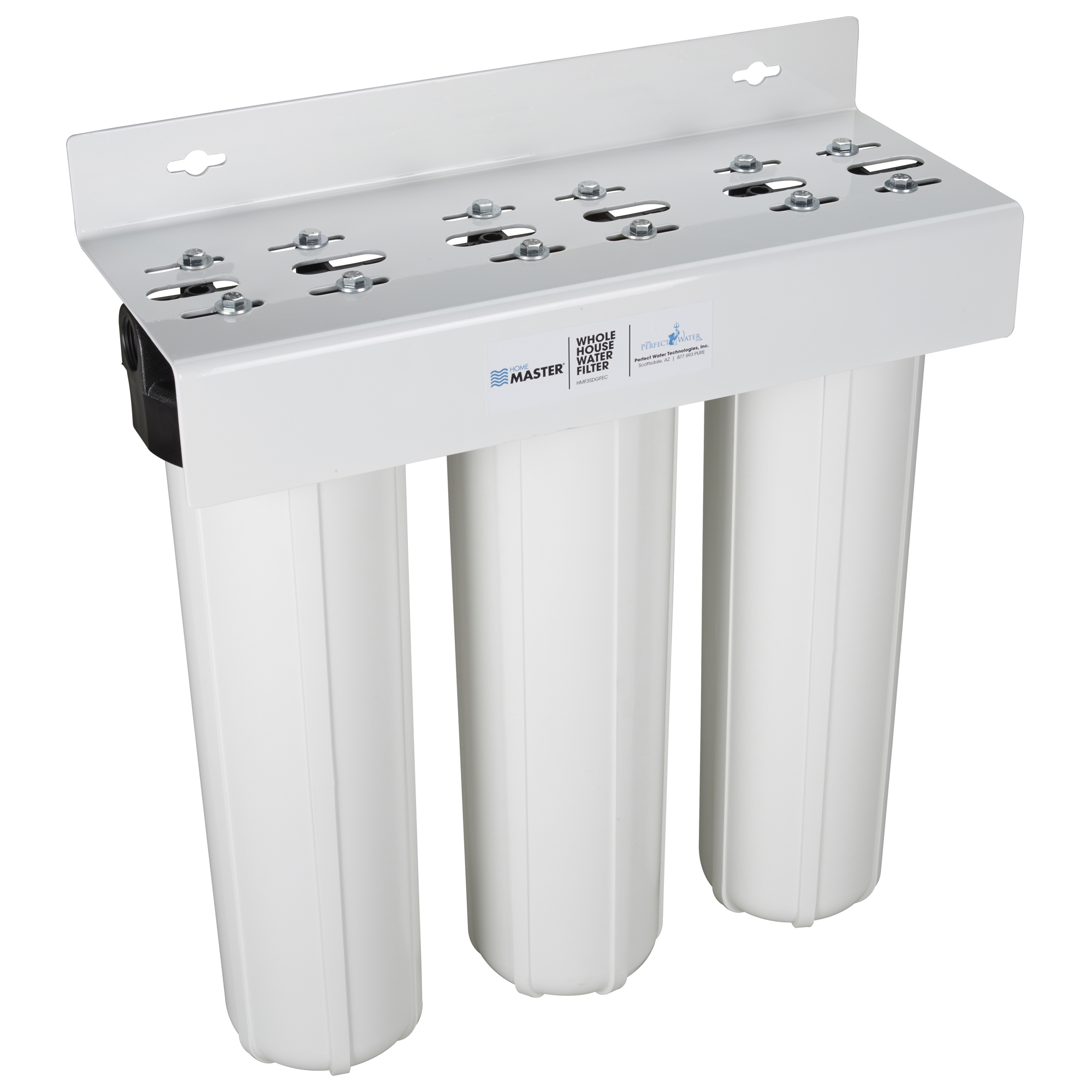

The Home Master^® Whole House Water Filter

Pressure Performance Series

You pick the number and type of filters - we build it for you!
Massive filter housings with 1" ports for the strongest water pressure possible -- up to 20 gallons per minute.
Solid Steel mounting bracket
2 Year Warranty
For 4-6 stages, use 2 systems

The choice is yours -- more sediment filtration, double the carbon filtration, add iron reduction -- you pick the number of stages and the corresponding number of filters and we'll build it for you with Pressure Performance™.

The main purpose of the Home Master^® whole house water filter is to deliver clean, clear water to every water faucet and shower head in your home without drawing down water pressure. Competitor’s systems use undersized housings with small ports, which restrict water flow and reduce performance so that shower pressure becomes weak and unpleasant.

⇒ Nothing ruins a shower like weak water pressure

The Home Master^® Filter Pressure Performance Series was designed with your comfort and convenience in mind. The Home Master^® Filter Pressure Performance Series uses oversized filters, housings, and fittings whenever possible to ensure your water pressure never falls short. Larger housings mean larger filters, which require less frequent service, which in turn saves you time, money, and inconvenience. Customized water treatment with Home Master carbon water filter. Pick stages and filters, we build the system for you. Pure water everywhere in your home.

The Home Master^® Water Filter – Pure Water Everywhere – with Pressure Performance™

Contents :

Instruction book and warranty card.
Home Master^® Water Filter system with selected filters
Steel mounting bracket with bolts
Housing wrench

Recommended Operating conditions

pH: >7.0
Silica: <100 ppm
Manganese: <1 ppm
Iron: < 3ppm
Iron Bacteria: NONE
Hydrogen Sulfide: NONE (The iron filter will remove Hydrogen Sulfide but it will reduce its effective life)
Feed water: 20 - 90 PSI
Feed water Temperature: 40˚ - 100˚(F)
Max. Total Dissolved Solids (TDS): 2000 ppm
Potable well or municipal water with adequate disinfection before and after unit

General System Specifications

Dimensions 25”h x 9”w x 9”d per stage
Shipping weight 15 lbs.per stage (approx.)

Filter Details

30 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 30 micron

30 micron pleated sediment filter.
Pleated design maximizes dirt-holding capacity.
Washable and reusable. 1-6 uses before tearing.
Reduces dirt, sand, silt, and rust particles.
Durable polyester media is bacteria and chemical resistant
Low pressure drop (<1psi)

5 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 5 micron

5 micron pleated sediment filter.
Pleated design maximizes dirt-holding capacity.
Washable and reusable. 1-6 uses before tearing.
Reduces dirt, sand, silt, and rust particles.
Durable polyester media is bacteria and chemical resistant
Low pressure drop (<1psi)

1 micron
Reusable
Sediment

Reusable Pleated Polyester Sediment Filter 1 micron

1 micron Absolute pleated sediment filter.
Pleated design maximizes dirt-holding capacity.
Washable and reusable. 1-6 uses before tearing (do not reuse when treating Cryptosporidium and Giardia)
Reduces Cryptosporidium, Giardia, dirt, sand, silt, and rust particles.
Durable polyester media is bacteria and chemical resistant
Low pressure drop (<1psi)

25/10/5/1 micron
Multi Gradient
Sediment

Multi-Gradient Sediment Filter 25/10/5/1 micron

4 layer sediment filter - 25 micron outer layer, 10 micron inner layer, 5 mircon inner layer, and 1 micron inner core.
Depth filtration maximizes dirt-holding capacity.
Removes dirt, sand, silt, turbidity and rust particles.
Durable polyester media is bacteria and chemical resistant
Low pressure drop (<1psi)

0.2 micron
Nano Fiber
Sediment

NanoFiber Sediment Filter 0.2 micron

0.2 micron absolute pleated sediment filter. Electropositive material removes virtually all suspended particles.
Removes 99.9% viruses, bacteria, cryptosporidium, giardia, turbidity, fine silt, clay, and rust particles.
Some reduction of fluoride and other ionic metals at slower flow rates (~50% @ <5 gpm)
Triple the dirt-holding capacity of similar sized filters.
High flow, Low pressure drop (<1psi)

1 micron
Carbon Block
w/ lead & cyst

Carbon Block Filter 1 micron absolute with additional Lead and Cyst Defense

Fine carbon filtration - 1 micron absolute
Removes up to 99% chlorine, chemicals, tastes, odors, Cryptosporidium and Giardia cysts.
Lead removal over 90%
42,000 gallon lifecycle for chlorine reduction, 17,000 gallons for lead reduction
For applications where fine filtration is more important than high pressure (8.5 psi pressure drop @ 4 gpm)

Radial Flow
Iron Filter

Radial Flow Iron reducing filter 20 micron

Radial Flow design ideal for high flow applications
Excellent iron reduction with minimal pressure drop (<1 psi pressure drop)
Easily and effectively reduces iron in water up to 3ppm
Lifecycle based upon iron level and conditions. (see chart below)

Radial Flow
Catalytic Carbon Filter

Radial Flow Granular Activated Catalytic Coconut Shell Carbon Filter 20 micron

Radial Flow design ideal for high flow applications
Catalytic carbon produces excellent chloramine removal with minimal pressure drop (<1 psi pressure drop)
Removes up to 95% of chloramine, chlorine, chemicals, tastes and odors.
95,000 gallon lifecycle for chlorine reduction
Highest grade coconut shell catalytic carbon for maximum chemical removal and superior taste

Upflow KDF55 /

GAC Catalytic Carbon

Upflow Granular Activated Catalytic Carbon Filter with KDF55; Heavy Duty Lead Filtration

KDF55 media removes soluble heavy metals such as lead, mercury and copper. Bactiostatic media prevents growth of algae, mold, fungus and bateria within the filter.
Catalytic Carbon removes chloramines, chlorine, chemicals, tastes, and odors
12 pounds of KDF55 media for heavy duty lead filtration
50,000 gallon lifecycle for lead reduction

Upflow KDF85 /

GAC Catalytic Carbon

Upflow Granular Activated Catalytic Carbon Filter with KDF85

KDF85 media removes soluble metals such as mercury, copper and aluminum. Also small amounts of iron, manganese and hydrogen sulfide (1 ppm).
Bactiostatic media prevents growth of algae, mold, fungus and bateria within the filter.
Catalytic Carbon removes chloramines, chlorine, chemicals, tastes, and odors
3 pounds of KDF85 media for enhanced filtration capabilities
95,000 gallon lifecycle for chlorine reduction
